Building a Custom 3D Design and Quote Tool for a Magento Store

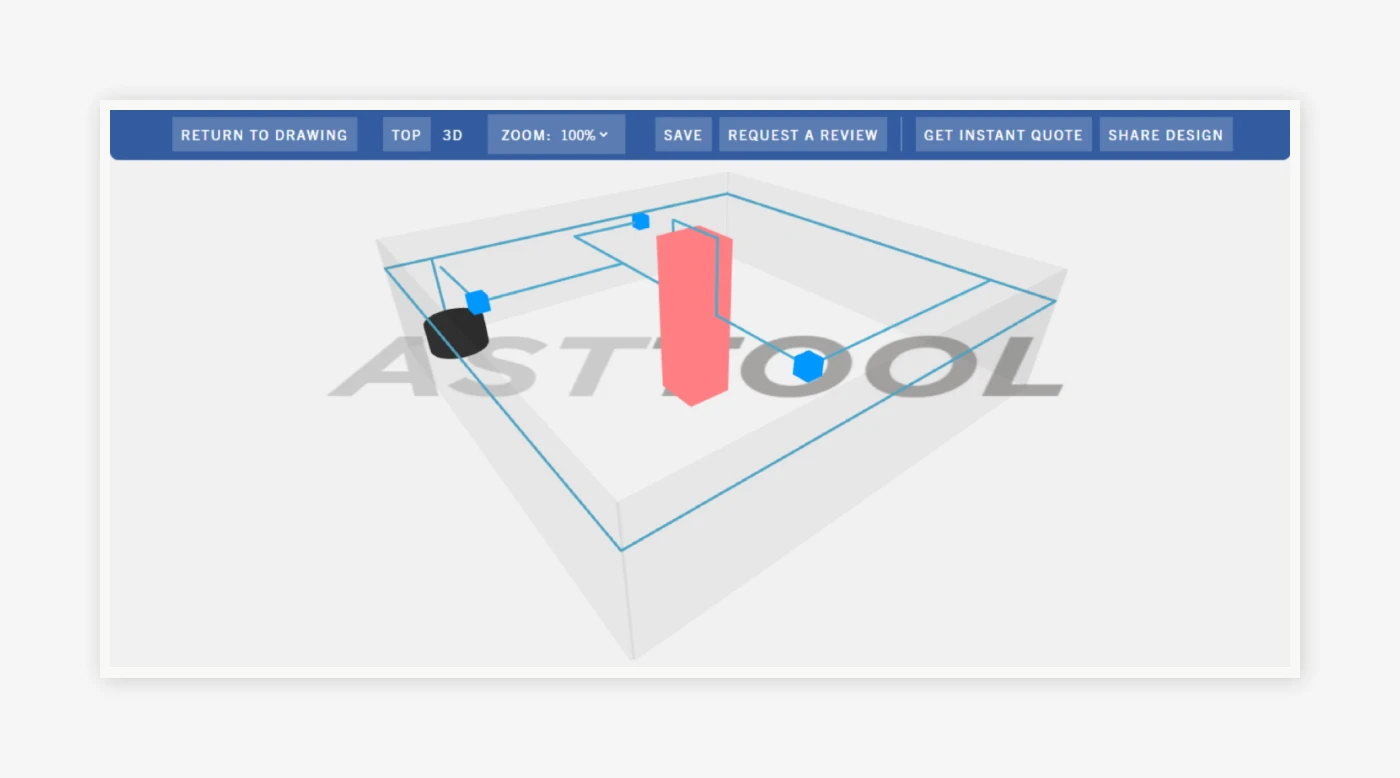

Transforming traditional 2D schematics into an accurate 3D representation required sophisticated rendering algorithms and precise dimensional scaling. The tool needed to interpret user-entered building dimensions, pipe lengths, angles, and accessories, then generate a lifelike 3D model that matched engineering tolerances. Achieving a seamless transition between 2D plan views and a fully interactive 360° preview meant overcoming challenges in mesh generation, real-time texture mapping, and camera control. Additionally, ensuring consistent performance across desktop and tablet devices under varied network conditions demanded extensive optimization of graphical assets, scene hierarchies, and WebGL shaders. With sub-300ms render times essential to maintain user engagement, our team had to fine-tune every aspect of the rendering pipeline-from geometry instancing to frustum culling-while preserving engineering accuracy and visual fidelity.

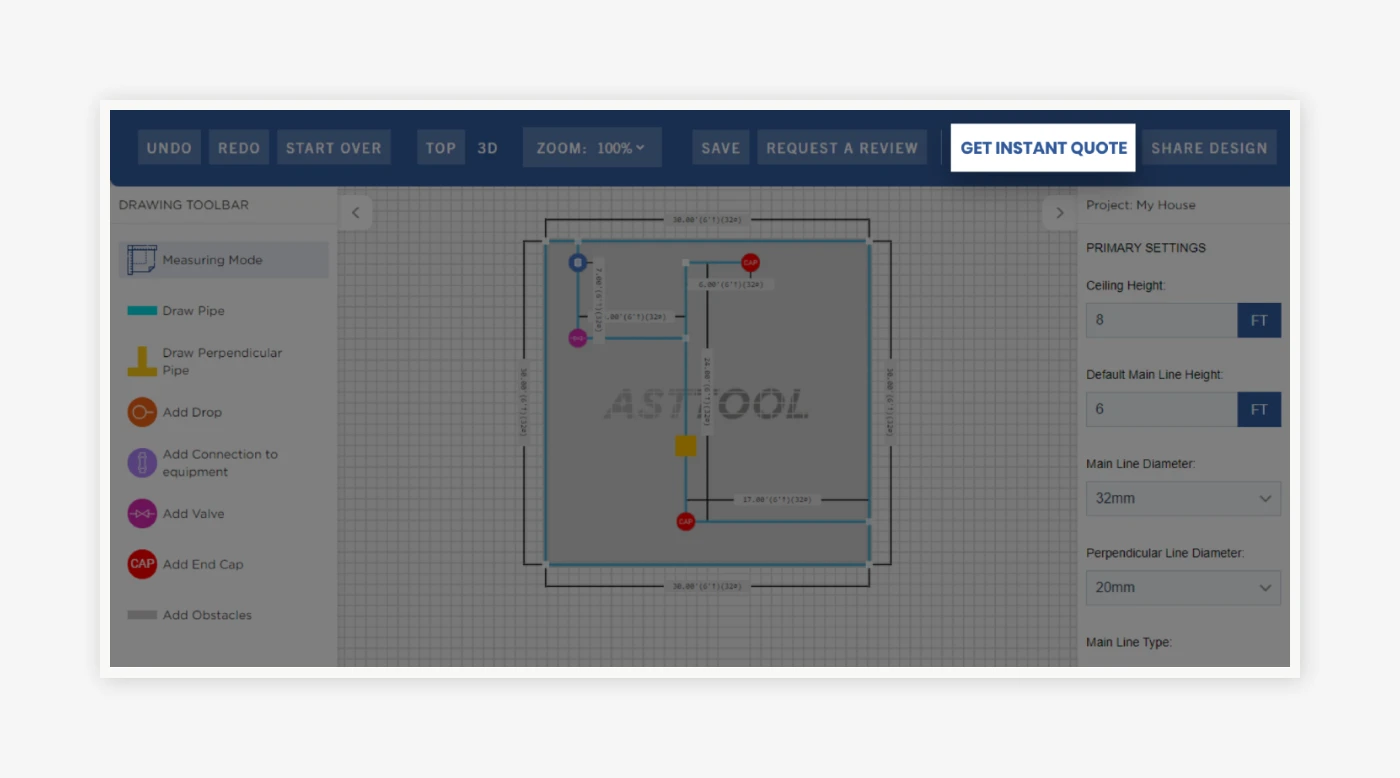

Seamlessly syncing design data, user sessions, and product configurations between the custom builder tool and the Magento 2 store presented a complex data-exchange challenge. Each time a customer added or modified a component, the tool needed to update pricing rules, inventory availability, and custom quote attributes in real time. Maintaining transactional integrity-so that partial designs or abandoned quotes didn’t corrupt the Magento database-required implementing robust API endpoints with idempotent operations, queuing mechanisms, and fallback routines. We also needed to embed the builder UI into the Magento storefront without compromising page load speeds or conflicting with existing themes, extensions, and caching layers. Ensuring bidirectional synchronization while preserving the shop’s normal checkout and CMS workflows pushed our Magento specialists to design a custom module with extensible service contracts and event-driven updates.

Within complex piping designs, selecting the right compressor model based on system size, required flow rates, and pressure drops is critical. Enabling real-time compressor adjustments within the drawing tool meant building a dynamic calculation engine that could process user inputs-such as total pipe length, number of branches, and accessory pressure impacts-and suggest optimal compressor specifications on the fly. These calculations had to account for fluid dynamics principles and vendor-specific performance curves stored in Magento as product attributes. Integrating this engine into the UI without interrupting the design flow required asynchronous computation jobs, Web Workers for heavy calculations, and a responsive design panel that updated instantly as users tweaked layouts.

Allowing pipes, valves, expansion joints, and other components to automatically snap and align demanded advanced spatial algorithms. As users dragged elements onto the canvas, the system needed to detect valid connection points, enforce engineering constraints (e.g., minimum bend radii), and adjust adjacent objects to maintain design integrity. Implementing this “smart snapping” required constructing a hierarchical scene graph, spatial indexing (using an R-tree), and constraint solvers to resolve overlaps and collisions. The tool also had to support manual overrides for expert users, who might need to fine-tune connections. Balancing automated alignment with user control, while preventing invalid configurations, was a significant UI/UX and engineering challenge.

To protect user progress during lengthy design sessions, an autosave feature needed to persist partial layouts at regular intervals without degrading performance or disrupting the interactive experience. This involved serializing complex scene states-including geometry, camera positions, and component metadata-and sending incremental diffs to the server. We implemented a debounced autosave scheduler in the client, batching only changed entities to minimize payloads. On the server, we employed a versioned document store, allowing users to revert to earlier snapshots if needed. Orchestrating this system required careful coordination between frontend Web Workers, REST endpoints, and Magento’s quote tables, ensuring data integrity while preserving a fluid editing experience.
